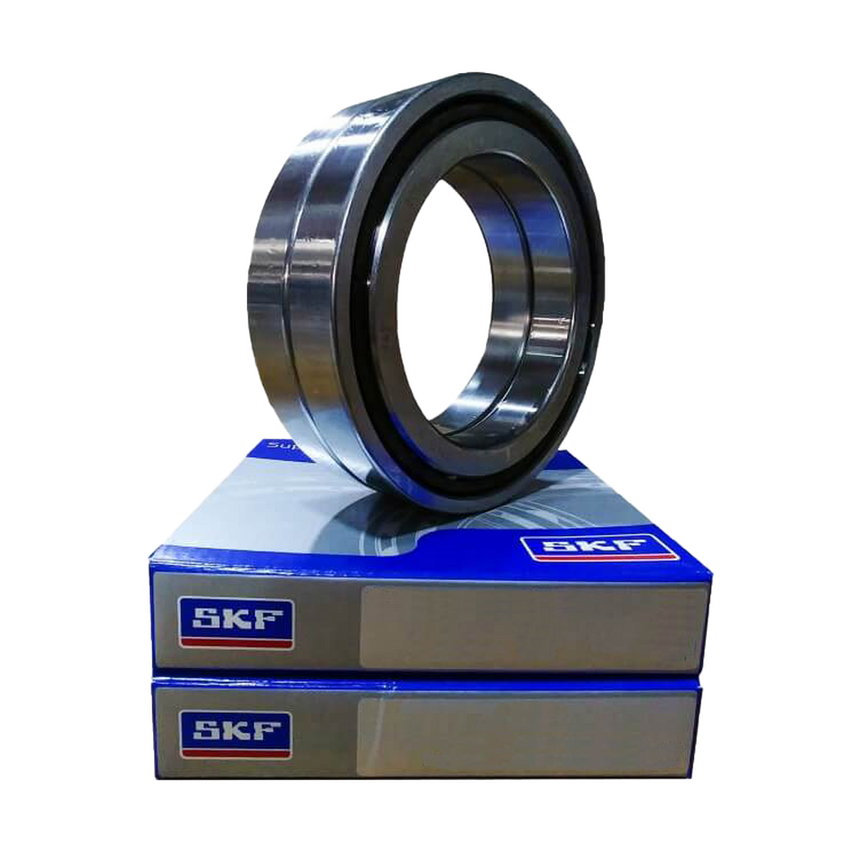

BTM130ATN9/DBAVQ496 - SKF Double Direction Angular Contact Thrust - 130x200x63mm
BTM130ATN9/DBAVQ496 - SKF Double Direction Angular Contact Thrust - 130x200x63mm
-
Estimated delivery: Oct 31 - Nov 03
In stock
Couldn't load pickup availability
Description
Enhance the performance of your machinery with the SKF BTM130ATN9/DBAVQ496 Super Precision Angular Contact Thrust Ball Bearing. Specifically engineered for high-speed applications, these bearings provide exceptional accuracy and stability and are designed to axially locate the shafts of spindles in both directions. BTM130 ATN9/DBAVQ496 bearings offer a high-speed design and are intended for mounting in combination with NN30 K or N10 K Cylindrical Roller Bearings. The dimensions of this BTM130ATN9/DBAVQ496 bearing are 130x200x63mm.
| BTM | 130 | A | TN9 | /DB | A | VQ496 |
|---|---|---|---|---|---|---|
| High-Speed Design Double Direction Angular Contact Thrust Bearing | 130mm - Bore Size | 30° Contact Angle | Two Glass Fibre Reinforced PA66 Cages, Window-Type, Ball Centered | Two Bearings Arranged Back-to-Back | Light Preload | Dimensional Difference to Normal, Not Specified by SKF |
Key Features
High Precision
Manufactured with tight tolerances, the Super Precision BTM130 ATN9/DBAVQ496 bearing is manufactured by SKF to ensure a consistently high rotational accuracy and optimal performance.
Double Directional Loads
Capable of handling axial loads in both directions, the BTM130ATN9/DBAVQ496 Super Precision Angular Contact Thrust Bearing has a double direction design which provides enhanced versatility and reliability in machinery.
Angular Contact Design
The BTM130 ATN9/DBAVQ496 bearing is made up of two non-separable Single Row Angular Contact Bearings in a back-to-back arrangement and are designed to accommodate axial loads in both directions while providing a high degree of system rigidity. They have a 30° contact angle which can operate at much higher speeds than bearings with a 40° contact angle.
Product Information
Technical Data
