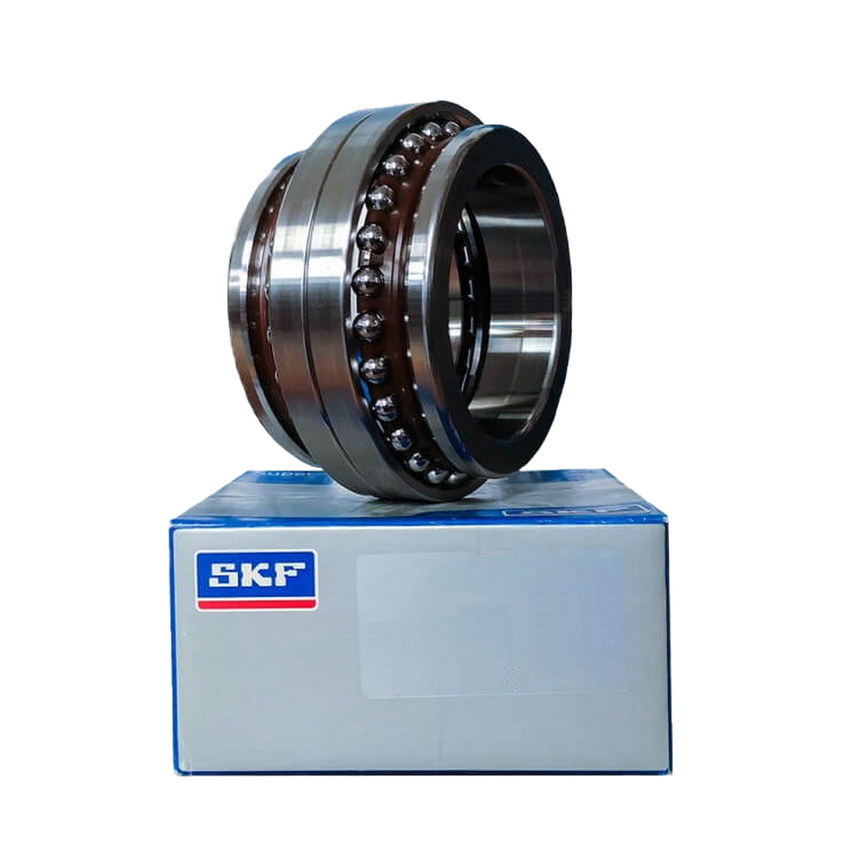

BTW65CTN9/SP -SKF Double Direction Angular Contact Thrust - 65x100x44
BTW65CTN9/SP -SKF Double Direction Angular Contact Thrust - 65x100x44
-
Estimated delivery: Oct 31 - Nov 03
In stock
Couldn't load pickup availability
Description
Enhance the performance of your machinery with the SKF BTW65CTN9/SP Super Precision Angular Contact Thrust Ball Bearing. Specifically engineered for high-speed applications, these bearings provide exceptional accuracy and stability and are designed to axially locate the shafts of spindles in both directions. BTW65 CTN9/SP bearings offer a high-speed design and are intended for mounting in combination with NN30 K or N10 K Cylindrical Roller Bearings. The dimensions of this BTW65CTN9/SP bearing are 65x100x44mm.
| BTW | 65 | C | TN9 | /SP |
|---|---|---|---|---|
| Basic Design Double Direction Angular Contact Thrust Bearing | 65mm - Bore Size | 60° Contact Angle | Two Glass Fibre Reinforced PA66 Cages, Snap-Type, Ball Centered | ISO Tolerance Class 5 Dimensional Accuracy, Class 4 Running Accuracy |
Key Features
High Precision
Manufactured with tight tolerances, the Super Precision BTW65 CTN9/SP bearing is manufactured by SKF to ensure a consistently high rotational accuracy and optimal performance.
Double Directional Loads
Capable of handling axial loads in both directions, the BTW65CTN9/SP Super Precision Angular Contact Thrust Bearing has a double direction design which provides enhanced versatility and reliability in machinery.
Angular Contact Design
The BTW65 CTN9/SP bearing is made up of two separable Single Row Angular Contact Thrust Ball Bearings with a 60° contact angle in a back-to-back arrangement. Configured in this way, and with the large number of balls the bearings contain, means these bearings can accommodate heavy axial loads in both directions while providing a high degree of system rigidity.
Product Information
Technical Data
