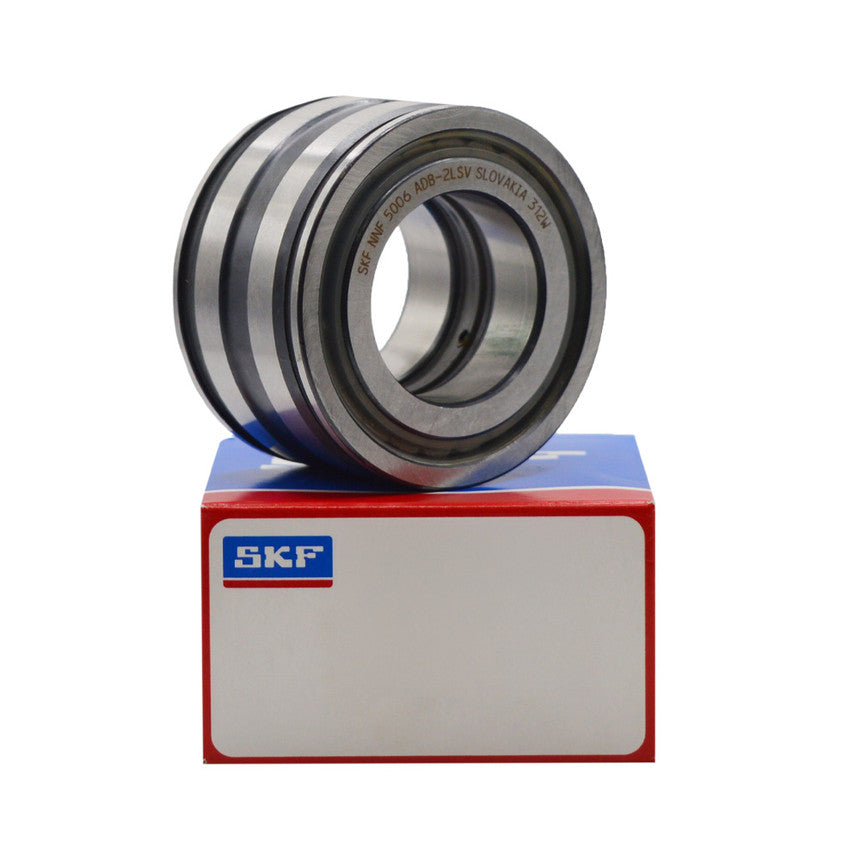

NNF5010ADB-2LSV - SKF Double Row Cylindrical Roller - 50x80x40mm
NNF5010ADB-2LSV - SKF Double Row Cylindrical Roller - 50x80x40mm
-
Estimated delivery: Oct 31 - Nov 03
In stock
Couldn't load pickup availability
Description
Engineered with precision and quality craftsmanship, the NNF5010ADB-2LSV SKF is designed to ensure maximum performance of your machinery. This double row, full complement bearing has a two-piece inner ring held together by a retaining ring. The inner ring has three integral flanges, and the outer ring has one central integral flange. It has two PUR contact seals, and the outer ring has two snap ring grooves. The dimensions of the SKF NNF5010ADB-2LSV SKF bearing are 50x80x40mm.
| NNF | 5010 | ADB | 2LS | V |
|---|---|---|---|---|
| Double Row, Non-Separable | 50mm - Bore Size | Modified Snap Ring Grooves In The Outer Ring, Two Piece Inner Ring Held Together By Retaining Ring, Modified Internal Design | Two PUR Contact Seals | Full Complement (No Cage) |
Key Features
Cylindrical Roller Design
The NNF5010ADB-2LSV SKF bearing features a cylindrical roller design, optimising load distribution and facilitating high radial load capacity. NNF-type has a two-piece inner ring held together by a retaining ring. The inner ring has three integral flanges, and the outer ring has one central integral flange. Therefore, this type is used to axially locate a shaft in both directions.
Sealed for Protection
The NNF5010ADB-2LSV SKF bearing has a PUR contact seal on both sides which are fitted in a recess on the inner ring shoulder. The seals retain the lubrication in the bearing while excluding contaminants.
High-Speed Capability
The NNF5010 ADB-2LSV SKF bearing is designed to handle high-speed operations while maintaining low noise and vibration levels. This ensures smooth and efficient rotation in dynamic environments without compromising stability. This makes it ideal for applications that demand rapid rotation.
Annular Lubrication Groove and Holes
Equipped with an annular groove and three lubrication holes for lubricant distribution, the NNF5010ADB-2LSV SKF bearing makes lubrication an easy process reducing maintenance time and intervals.
Product Information
Technical Data
