FAG

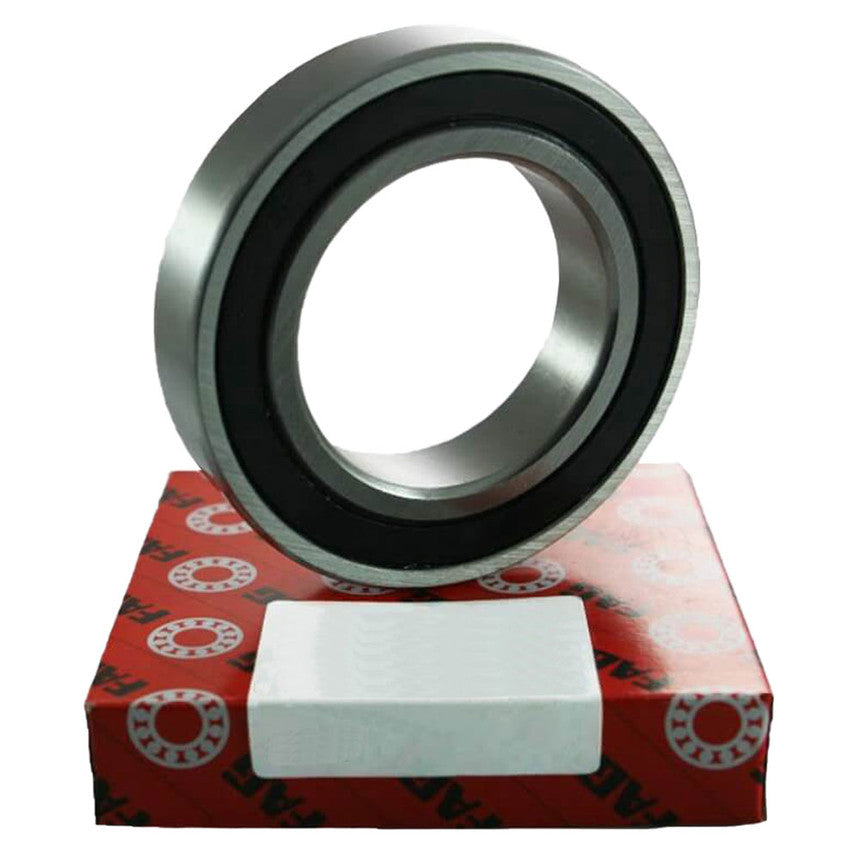

S6305-2RSR-HLC - FAG Deep Groove Radial Ball Bearings - 25x62x17mm

S6305-2RSR-HLC - FAG Deep Groove Radial Ball Bearings - 25x62x17mm

SKU: s6305-2rsr-hlc-fag

£62.12 Excl. VAT £74.54 Inc. VAT
£62.12 Excl. VAT £74.54 Inc. VAT Excl. VAT £0.00 Inc. VAT
View Bulk Pricing
  • Estimated delivery: Nov 03 - Nov 04

In stock

  • Order before 3pm for same day dispatch
  • Free express shipping on orders over £50.00
  • Hassle-Free returns within 14 days

Description

The S6305-2RSR-HLC FAG Deep Groove Radial Ball Bearing is engineered for superior performance and reliability, making it an ideal choice for a wide range of industrial applications. This precision-crafted bearing is perfect for operations that need smooth, efficient, and long-lasting performance. The dimensions of this bearing are 25x62x17mm.

s 63 05 2rsr hlc
Stainless Steel Metric, Medium 25mm - Bore Size Rubber Seals on Both Sides of Bearing Steel Cage Normal Internal Clearance Bearing Has A Heavy Lifting Capacity

Key Features

High-Quality Materials

These high-quality bearings are manufactured from corrosion-resistant stainless steel, ensuring durability and strength under demanding conditions. This means your machinery won’t break down when exposed to harsh environments or extreme operating conditions, such as high humidity or corrosive substances.

Stainless Steel Material

The S6305-2RSR-HLC is made of high-grade stainless steel, offering excellent corrosion resistance. This makes it ideal for use in environments with exposure to water or high humidity.

Ability to Handle High Loads

The High-Load Capacity (HLC) part of the code means this bearing handles high radial and axial loads with ease, giving your application stability and reliability.

Versatile Application

These bearings are suitable for a wide range of applications, including machinery, automotive systems, and electric motors.

Low Friction Design

These deep groove radial ball bearings are optimised for reduced friction, leading to quieter operation which is perfect for applications require minimal noise, such as household appliances, precision instruments, or high-speed electric motors.

FAG S6305-2RSR-HLC Bearing Code

Each segment of the bearing code S6305-2RSR-HLC provides critical information about its design, specifications, and performance characteristics. Here's a breakdown:

S

The "S" prefix means that stainless steel is used as part of the material for this bearing, providing excellent resistance to corrosion and durability in harsh environments.

6305

This is the basic designation, which includes information about the bearing type and dimensions:

  • The first digit, 6, explains that this is a deep groove ball bearing, known for its versatility and reliability across applications.

  • The second and third digits, 30, indicate the ISO dimensional series. The series is based on the bearing’s outer diameter and width, independent of its inner diameter.

The last two digits, 05, signify the inner diameter, and the bore size of the bearing

2RSR

2RSR: This segment specifies that the bearing has two rubber seals on either side. These seals provide excellent protection against contamination from dirt, and are ideal for applications in environments where cleanliness is essential.

HLC

As previously mentioned, the "HLC" section stands for High Load Capacity, highlighting the bearing’s ability to handle substantial radial and axial loads while maintaining exceptional operational stability. This feature ensures the bearing can endure demanding industrial applications without compromising efficiency or lifespan.

Product Information

SKU: s6305-2rsr-hlc-fag Weight: 240 Availability: In Stock
