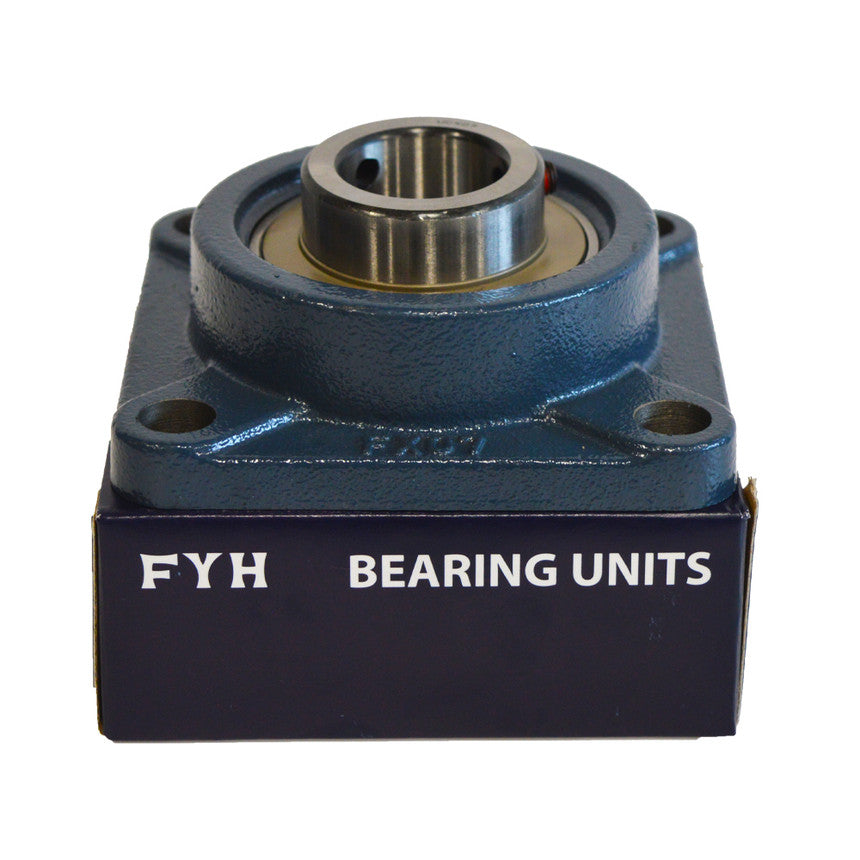

UCFX08 - FYH Square Flanged Bearing Unit - 40mm Inside Diameter

Description

Discover the UCFX08 from FYH, the perfect solution for your flanged assembly requirements. This Square Flanged Bearing Unit comes pre-lubricated and fitted with a sealed Bearing Insert for the highest durability and longevity. Crafted from high-quality cast iron, the UCFX08 Unit boasts exceptional strength and reliability, making it suitable for a wide range of applications. This medium duty four-bolt flanged unit has hexagon socket set screws and a 40mm shaft diameter.

Key Features

Self-Aligning Ability

The convex shape of the Bearing Inserts outer ring along with the concave sphered shape inside the housing gives this UCFX08 Square Flanged Unit the ability to self-align, adjust for shaft deviation, and reduce abnormal load.

Replaceable Inserts

The UCFX08 Bearing Unit has a UCX08 Bearing Insert which can be easily removed from the FX08 housing and replaced. Other compatible inserts can be used in the same housing.

Smooth Operation

Fitted with a new sealed Bearing Insert and housing, the UCFX08 ensures smooth operation, easy mounting, and high reliability, guaranteeing optimal performance in diverse environments.

Re-lubrication Capability

The UCFX08 allows for effortless re-lubrication via the grease hole and a grease fitting, promoting smooth operation and prolonging the lifespan of the bearing assembly.

Versatile Industry Applications

These Flanged Housing Units are relied upon in many industries, including mining, agriculture, manufacturing and production, and industrial engineering.

Corrosion Protection

Constructed with a single cast housing piece, the UCFX08 offers basic protection against corrosion, enhancing durability and longevity.
